Data Structures Overview: Array, Stack, Queue, Heap, Tree & Graph

This article is a compact overview of the most important data structures – with performance analysis, use cases, and Big-O notation.

In a Nutshell

The core data structures Array, Stack, Queue, Heap, Tree, and Graph form the foundation of efficient algorithms. They differ in access time, memory requirements, and applications.

Compact Technical Description

Data structures organize data for efficient access and processing. Each structure has specific properties and optimal areas of application.

Performance Overview:

Array

Access: O(1) - Direct via index
Insert/Delete: O(n) - Elements must be shifted
Memory: O(n) - Contiguous memory
Use: Fixed size, frequent random access

Stack (LIFO)

Push/Pop: O(1) - Only topmost element
Memory: O(n) - Dynamic or fixed
Use: Method calls, backtracking, parser

Queue (FIFO)

Enqueue/Dequeue: O(1) - Front/Back
Memory: O(n) - Circular queue possible
Use: Wait queues, BFS, buffer

Heap (Priority Queue)

Insert: O(log n) - Maintain heap property
Extract Min/Max: O(log n) - Remove root
Peek: O(1) - View minimum/maximum
Use: Priorities, scheduling, heap sort

Tree (BST)

Search: O(log n) - Balanced
Insert/Delete: O(log n) - Balanced
Memory: O(n) - Node-based
Use: Ordered data, databases

Graph

Traversal: O(V+E) - V=nodes, E=edges
Memory: O(V+E) - Adjacency list
Use: Networks, route planning

Exam-Relevant Key Points

Array: O(1) access, fixed size, contiguous memory
Stack: LIFO principle, push/pop O(1), call stack
Queue: FIFO principle, enqueue/dequeue O(1), buffer
Heap: Priority queue, O(log n) insert/extract, O(1) peek
Tree: Hierarchical, O(log n) with balancing, BST
Graph: Node-edge structure, BFS/DFS O(V+E)
Big-O Notation: Time and space complexity
IHK-relevant: Foundation for algorithms and efficiency

Core Components

Array: Indexed collection with direct access
Stack: LIFO data structure for backtracking
Queue: FIFO data structure for wait queues
Heap: Priority-based tree structure
Tree: Hierarchical parent-child relationships
Graph: Network of nodes and edges
Performance: Big-O analysis of operations
Application: Optimal structure selection

Practical Examples

1. Array vs ArrayList Performance

import java.util.*;

public class ArrayPerformance {
    public static void main(String[] args) {
        final int GROESSE = 100_000;

        // Array (feste Größe)
        long start = System.nanoTime();
        int[] array = new int[GROESSE];
        for (int i = 0; i < GROESSE; i++) {
            array[i] = i; // O(1) Schreiben
        }
        long arrayZeit = System.nanoTime() - start;

        // ArrayList (dynamisch)
        start = System.nanoTime();
        List<Integer> arrayList = new ArrayList<>();
        for (int i = 0; i < GROESSE; i++) {
            arrayList.add(i); // O(1) amortisiert
        }
        long arrayListZeit = System.nanoTime() - start;

        // Random Access Test
        Random random = new Random();

        start = System.nanoTime();
        for (int i = 0; i < 1000; i++) {
            int index = random.nextInt(GROESSE);
            int wert = array[index]; // O(1)
        }
        long arrayAccess = System.nanoTime() - start;

        start = System.nanoTime();
        for (int i = 0; i < 1000; i++) {
            int index = random.nextInt(GROESSE);
            int wert = arrayList.get(index); // O(1)
        }
        long arrayListAccess = System.nanoTime() - start;

        System.out.println("Array fill time: " + arrayZeit / 1_000_000 + " ms");
        System.out.println("ArrayList fill time: " + arrayListZeit / 1_000_000 + " ms");
        System.out.println("Array access: " + arrayAccess / 1000 + " μs");
        System.out.println("ArrayList access: " + arrayListAccess / 1000 + " μs");
    }
}

2. Stack vs Queue Application

import java.util.*;

public class StackQueueDemo {
    public static void main(String[] args) {
        // Stack for bracket checking (LIFO)
        String ausdruck = "{[()()]}";
        if (pruefeKlammer(ausdruck)) {
            System.out.println("Expression '" + ausdruck + "' is valid");
        }

        // Queue for printer queue (FIFO)
        Queue<String> druckerQueue = new LinkedList<>();
        druckerQueue.add("Dokument1.pdf");
        druckerQueue.add("Dokument2.pdf");
        druckerQueue.add("Dokument3.pdf");

        System.out.println("Printer queue:");
        while (!druckerQueue.isEmpty()) {
            String dokument = druckerQueue.remove();
            System.out.println("Print: " + dokument);
        }

        // Performance comparison
        performanceVergleich();
    }

    // Bracket checking with stack
    private static boolean pruefeKlammer(String ausdruck) {
        Stack<Character> stack = new Stack<>();

        for (char zeichen : ausdruck.toCharArray()) {
            switch (zeichen) {
                case '(': case '[': case '{':
                    stack.push(zeichen);
                    break;
                case ')':
                    if (stack.isEmpty() || stack.pop() != '(') return false;
                    break;
                case ']':
                    if (stack.isEmpty() || stack.pop() != '[') return false;
                    break;
                case '}':
                    if (stack.isEmpty() || stack.pop() != '{') return false;
                    break;
            }
        }
        return stack.isEmpty();
    }

    private static void performanceVergleich() {
        final int OPERATIONEN = 1_000_000;

        // Stack performance
        long start = System.nanoTime();
        Stack<Integer> stack = new Stack<>();
        for (int i = 0; i < OPERATIONEN; i++) {
            stack.push(i);
        }
        for (int i = 0; i < OPERATIONEN; i++) {
            stack.pop();
        }
        long stackZeit = System.nanoTime() - start;

        // Queue performance
        start = System.nanoTime();
        Queue<Integer> queue = new LinkedList<>();
        for (int i = 0; i < OPERATIONEN; i++) {
            queue.add(i);
        }
        for (int i = 0; i < OPERATIONEN; i++) {
            queue.remove();
        }
        long queueZeit = System.nanoTime() - start;

        System.out.println("\nPerformance comparison (" + OPERATIONEN + " operations):");
        System.out.println("Stack time: " + stackZeit / 1_000_000 + " ms");
        System.out.println("Queue time: " + queueZeit / 1_000_000 + " ms");
    }
}

3. Priority Queue (Heap) Application

import java.util.*;

public class PriorityQueueDemo {
    public static void main(String[] args) {
        // Min-heap for ascending sort
        PriorityQueue<Integer> minHeap = new PriorityQueue<>();
        minHeap.add(30);
        minHeap.add(10);
        minHeap.add(20);
        minHeap.add(40);
        minHeap.add(5);

        System.out.println("Min-Heap (Priority Queue):");
        while (!minHeap.isEmpty()) {
            System.out.println("Extract Min: " + minHeap.remove());
        }

        // Max-heap with comparator
        PriorityQueue<Integer> maxHeap = new PriorityQueue<>(Collections.reverseOrder());
        maxHeap.add(30);
        maxHeap.add(10);
        maxHeap.add(20);
        maxHeap.add(40);
        maxHeap.add(5);

        System.out.println("\nMax-Heap:");
        while (!maxHeap.isEmpty()) {
            System.out.println("Extract Max: " + maxHeap.remove());
        }

        // Task scheduling with priorities
        taskSchedulingDemo();
    }

    private static void taskSchedulingDemo() {
        // Task with priority
        class Task {
            String name;
            int priority;

            Task(String name, int priority) {
                this.name = name;
                this.priority = priority;
            }

            @Override
            public String toString() {
                return name + " (Prio: " + priority + ")";
            }
        }

        // Priority queue for tasks
        PriorityQueue<Task> taskQueue = new PriorityQueue<>(
            (t1, t2) -> Integer.compare(t2.priority, t1.priority) // Max-heap
        );

        taskQueue.add(new Task("Send email", 2));
        taskQueue.add(new Task("Database backup", 5));
        taskQueue.add(new Task("Analyze logs", 1));
        taskQueue.add(new Task("Security update", 10));

        System.out.println("\nTask scheduling (high priority first):");
        while (!taskQueue.isEmpty()) {
            System.out.println("Execute: " + taskQueue.remove());
        }
    }
}

4. Search Tree vs Array Search

import java.util.*;

class TreeNode {
    int wert;
    TreeNode links, rechts;

    TreeNode(int wert) {
        this.wert = wert;
        this.links = this.rechts = null;
    }
}

class BinarySearchTree {
    TreeNode wurzel;

    void insert(int wert) {
        wurzel = insertRecursive(wurzel, wert);
    }

    private TreeNode insertRecursive(TreeNode knoten, int wert) {
        if (knoten == null) {
            return new TreeNode(wert);
        }

        if (wert < knoten.wert) {
            knoten.links = insertRecursive(knoten.links, wert);
        } else if (wert > knoten.wert) {
            knoten.rechts = insertRecursive(knoten.rechts, wert);
        }

        return knoten;
    }

    boolean search(int wert) {
        return searchRecursive(wurzel, wert);
    }

    private boolean searchRecursive(TreeNode knoten, int wert) {
        if (knoten == null) return false;
        if (knoten.wert == wert) return true;

        return wert < knoten.wert
            ? searchRecursive(knoten.links, wert)
            : searchRecursive(knoten.rechts, wert);
    }
}

public class SuchbaumVsArray {
    public static void main(String[] args) {
        final int GROESSE = 100_000;
        Random random = new Random();

        // Build BST
        BinarySearchTree bst = new BinarySearchTree();
        for (int i = 0; i < GROESSE; i++) {
            bst.insert(random.nextInt(GROESSE * 10));
        }

        // Create array
        List<Integer> array = new ArrayList<>();
        for (int i = 0; i < GROESSE; i++) {
            array.add(random.nextInt(GROESSE * 10));
        }

        int suchZahl = random.nextInt(GROESSE * 10);

        // BST search O(log n) on average
        long start = System.nanoTime();
        boolean bstGefunden = bst.search(suchZahl);
        long bstZeit = System.nanoTime() - start;

        // Array search O(n) worst-case
        start = System.nanoTime();
        boolean arrayGefunden = array.contains(suchZahl);
        long arrayZeit = System.nanoTime() - start;

        System.out.println("Search for " + suchZahl + ":");
        System.out.println("BST time: " + bstZeit / 1000 + " μs, found: " + bstGefunden);
        System.out.println("Array time: " + arrayZeit / 1000 + " μs, found: " + arrayGefunden);

        // Sorted array (Binary Search)
        Collections.sort(array);
        start = System.nanoTime();
        int index = Collections.binarySearch(array, suchZahl);
        long binaryZeit = System.nanoTime() - start;

        System.out.println("Binary search time: " + binaryZeit / 1000 + " μs, index: " + index);
    }
}

5. Graph Traversal Comparison

import java.util.*;

class Graph {
    private Map<Integer, List<Integer>> adjazenzliste = new HashMap<>();

    void kanteHinzufuegen(int u, int v) {
        adjazenzliste.computeIfAbsent(u, k -> new ArrayList<>()).add(v);
        adjazenzliste.computeIfAbsent(v, k -> new ArrayList<>()).add(u);
    }

    // Breadth-First Search (Queue)
    void bfs(int start) {
        Set<Integer> besucht = new HashSet<>();
        Queue<Integer> queue = new LinkedList<>();

        queue.add(start);
        besucht.add(start);

        System.out.print("BFS: ");
        while (!queue.isEmpty()) {
            int knoten = queue.remove();
            System.out.print(knoten + " ");

            for (int nachbar : adjazenzliste.getOrDefault(knoten, Collections.emptyList())) {
                if (!besucht.contains(nachbar)) {
                    besucht.add(nachbar);
                    queue.add(nachbar);
                }
            }
        }
        System.out.println();
    }

    // Depth-First Search (Stack/Recursion)
    void dfs(int start) {
        Set<Integer> besucht = new HashSet<>();
        dfsRecursive(start, besucht);
    }

    private void dfsRecursive(int knoten, Set<Integer> besucht) {
        besucht.add(knoten);
        System.out.print(knoten + " ");

        for (int nachbar : adjazenzliste.getOrDefault(knoten, Collections.emptyList())) {
            if (!besucht.contains(nachbar)) {
                dfsRecursive(nachbar, besucht);
            }
        }
    }
}

public class GraphTraversal {
    public static void main(String[] args) {
        Graph graph = new Graph();

        // Build graph
        graph.kanteHinzufuegen(0, 1);
        graph.kanteHinzufuegen(0, 2);
        graph.kanteHinzufuegen(1, 3);
        graph.kanteHinzufuegen(2, 4);
        graph.kanteHinzufuegen(3, 4);
        graph.ketteHinzufuegen(4, 5);

        System.out.println("Graph traversal:");
        graph.bfs(0); // Level-order: 0 1 2 3 4 5
        graph.dfs(0); // Depth-first: 0 1 3 4 2 5
    }
}

Big-O Notation Comparison Table

Time Complexity

Operation	Array	Stack	Queue	Heap	BST	Graph
Access	O(1)	O(n)	O(n)	O(1)	O(log n)	O(V+E)
Search	O(n)	O(n)	O(n)	O(n)	O(log n)	O(V+E)
Insert	O(n)	O(1)	O(1)	O(log n)	O(log n)	O(1)
Delete	O(n)	O(1)	O(1)	O(log n)	O(log n)	O(V+E)

Space Complexity

Data Structure	Memory	Note
Array	O(n)	Contiguous
Stack	O(n)	Dynamic
Queue	O(n)	Circular possible
Heap	O(n)	Tree structure
BST	O(n)	Node-based
Graph	O(V+E)	V=nodes, E=edges

Use Case Scenarios

Which data structure when?

Use Array when:

Size is known and constant
Frequent random access needed
Memory space critical (contiguous)

Use Stack when:

LIFO behavior needed
Backtracking states
Method calls of recursive functions

Use Queue when:

FIFO behavior needed
Implementing waiting lines
Breadth-First Search

Use Heap when:

Priorities are important
Frequent access to minimum/maximum
Scheduling algorithms

Use Tree when:

Storing ordered data
Efficient search required
Hierarchical relationships

Use Graph when:

Modeling network relationships
Route planning required
Many-to-many relationships

Performance Tips

Array Optimization

// Prepare loop
int[] array = new int[1000];
int laenge = array.length; // Not in every iteration

for (int i = 0; i < laenge; i++) {
    array[i] = i;
}

Stack Optimization

// Array instead of Stack for fixed size
int[] stack = new int[1000];
int top = -1;

void push(int wert) {
    stack[++top] = wert;
}

int pop() {
    return stack[top--];
}

Queue Optimization

// Circular Queue for fixed size
int[] queue = new int[1000];
int front = 0, rear = 0;

void enqueue(int wert) {
    queue[rear = (rear + 1) % queue.length] = wert;
}

int dequeue() {
    return queue[front = (front + 1) % queue.length];
}

Common Exam Questions

Which data structure for printer queue? Queue (FIFO) - first request is processed first.
Why is BST search faster than array search? BST: O(log n) by halving, Array: O(n) by linear search.
What is the difference between Stack and Queue? Stack: LIFO (Last-In, First-Out), Queue: FIFO (First-In, First-Out).
When do you use Heap instead of Array? When frequent access to minimum/maximum is needed (Priority Queue).

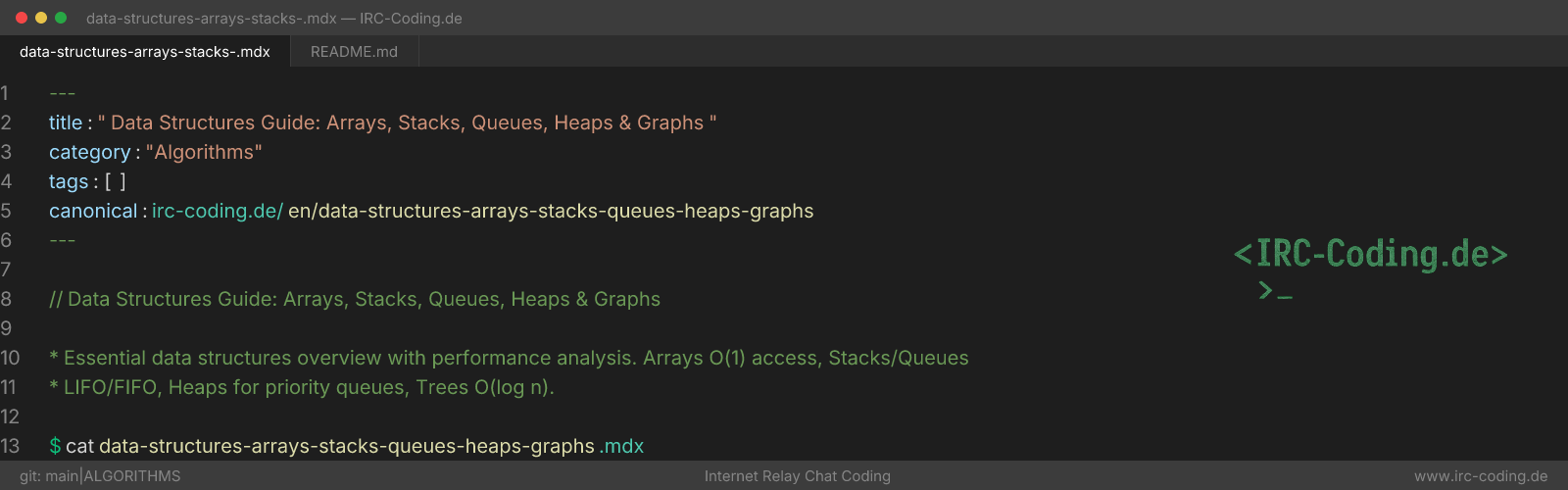

Data Structures Guide: Arrays, Stacks, Queues, Heaps & Graphs

Data Structures Overview: Array, Stack, Queue, Heap, Tree & Graph

In a Nutshell

Compact Technical Description

Array

Stack (LIFO)

Queue (FIFO)

Heap (Priority Queue)

Tree (BST)

Graph

Exam-Relevant Key Points

Core Components

Practical Examples

1. Array vs ArrayList Performance

2. Stack vs Queue Application

3. Priority Queue (Heap) Application

4. Search Tree vs Array Search

5. Graph Traversal Comparison

Big-O Notation Comparison Table

Time Complexity

Space Complexity

Use Case Scenarios

Which data structure when?

Performance Tips

Array Optimization

Stack Optimization

Queue Optimization

Common Exam Questions

Most Important Sources

Related Posts

Data Structures Fundamentals: Stack, Queue, Heap, Array, Tree, Graph

Data Structures: Stack, Queue, Heap, Array, Tree, Graph

Algorithms and Data Structures 2026

Data Structures Overview: Array, Stack, Queue, Heap, Tree & Graph

IRC-Mania Die Seite rund um Sicherheit und Programmierung

In a Nutshell

Compact Technical Description

Array

Stack (LIFO)

Queue (FIFO)

Heap (Priority Queue)

Tree (BST)

Graph

Exam-Relevant Key Points

Core Components

Practical Examples

1. Array vs ArrayList Performance

2. Stack vs Queue Application

3. Priority Queue (Heap) Application

4. Search Tree vs Array Search

5. Graph Traversal Comparison

IRC-Security.de

Big-O Notation Comparison Table

Time Complexity

Space Complexity

Use Case Scenarios

Which data structure when?

Performance Tips

Array Optimization

Stack Optimization

Queue Optimization

Common Exam Questions

Most Important Sources

Premium VPS Hosting

Related Posts

Data Structures Fundamentals: Stack, Queue, Heap, Array, Tree, Graph

Data Structures: Stack, Queue, Heap, Array, Tree, Graph

Algorithms and Data Structures 2026
